SUREHEAT® JET Gas Heaters
TUTCO SUREHEAT is a closed-loop controlled air heater designed for use with medium and high pressure blowers as air source.
Overview

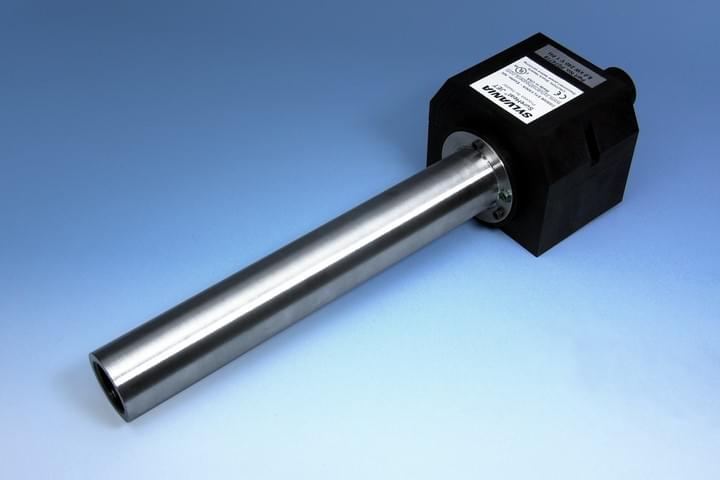

The JET provides a compact and efficient heater solution for air temperatures up to 1400°F (760°C). Available in a 3.0kW or 8.0kW, 240V 1ø unit, the Jet offers two type “K” thermocouples with a convenient terminal block for easy wiring. To ensure safety, power and perfect control, connect with the optional Jet Control Panel. Each heater has a convenient method for mounting the housing and offers a ground stud located at the inlet of the heater. Air is commonly supplied by compressed or regenerative air.

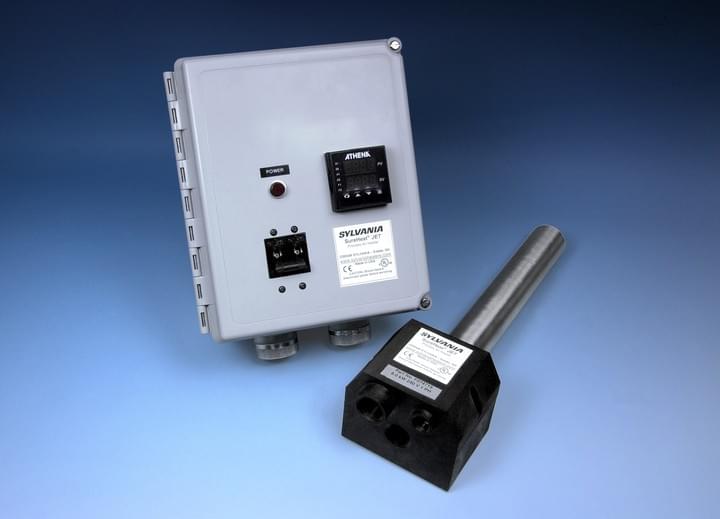

Control Panel
When powered and controlled with the SureHeat® Jet Control Panel (sold separately) you are provided a convenient, cost effective solution for safely controlling the AC power to your SureHeat® JET. If operated correctly, the heater will operate continuously for 5000 hours or longer.

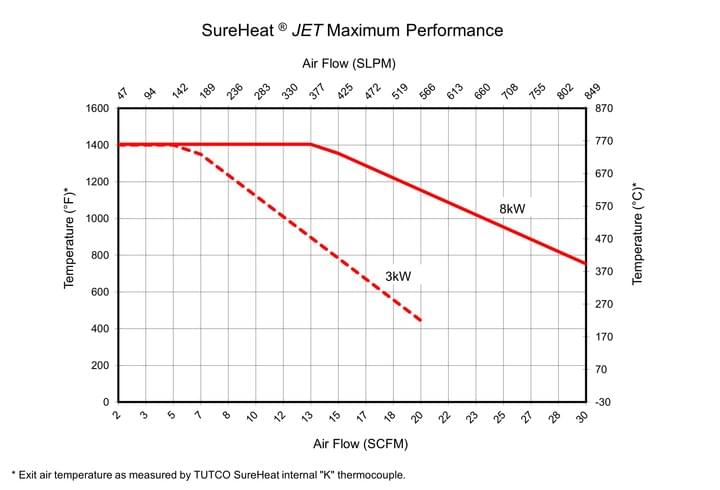

Performance
Specifications
- Air temperature controllable to 1400°F (760°C)
- Power ratings 3.0kW - 8.0kW 240V - 1 phase
- Two internal Type K thermocouple sensors for control and safety:
- S1 measures inlet temperature
- S2 measures exit temperature
- Rapid heat-up and cool-down
- Maximum air pressure 60 psi (4 bar)
- Maximum inlet temperature 200°F (93°C)
- Use SUREHEAT JET Control (purchased separately) for easy installation
- Recommended minimum airflow 2 SCFM (57 SLPM)
- RoHS compliant

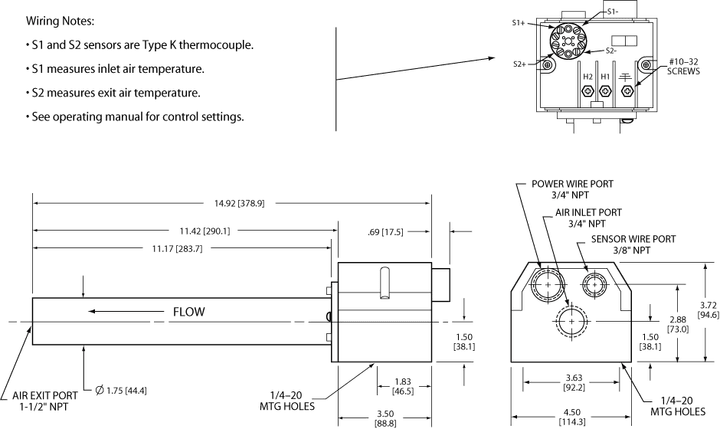

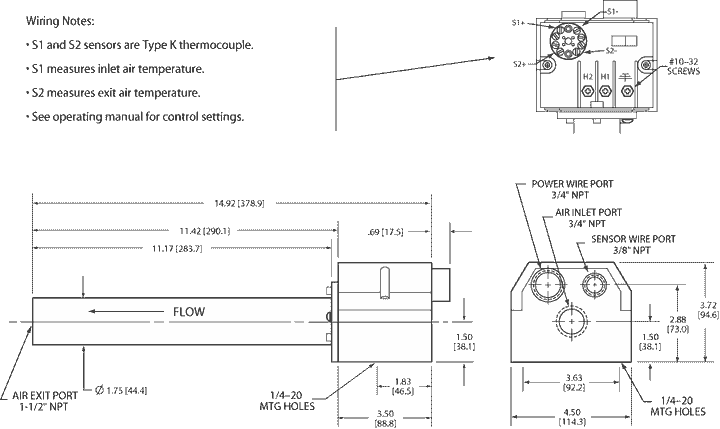

Installation
Additional Info
- Temperatures are measured by internal "K" thermal couple sensors locationed inside the SureHeat Jet housing.
- Use of other sensor types and/or locations can result inheater damage
- Minimum air flow for accurate control is 2 SCFM
- Maximum air temperature in 1400°F (760°C)
- Operating above temperature voids the product warranty
- UL Recognized, CE, RoHS

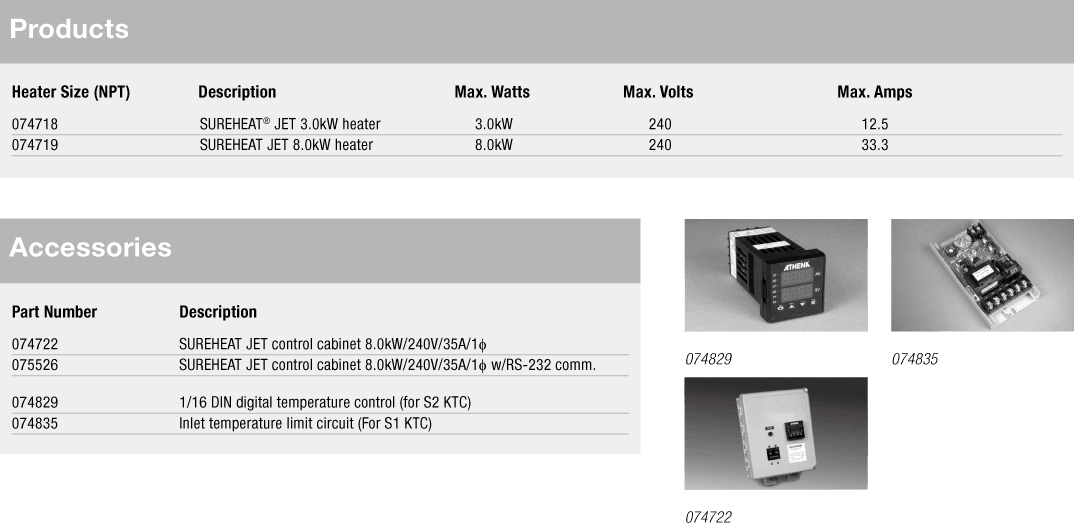

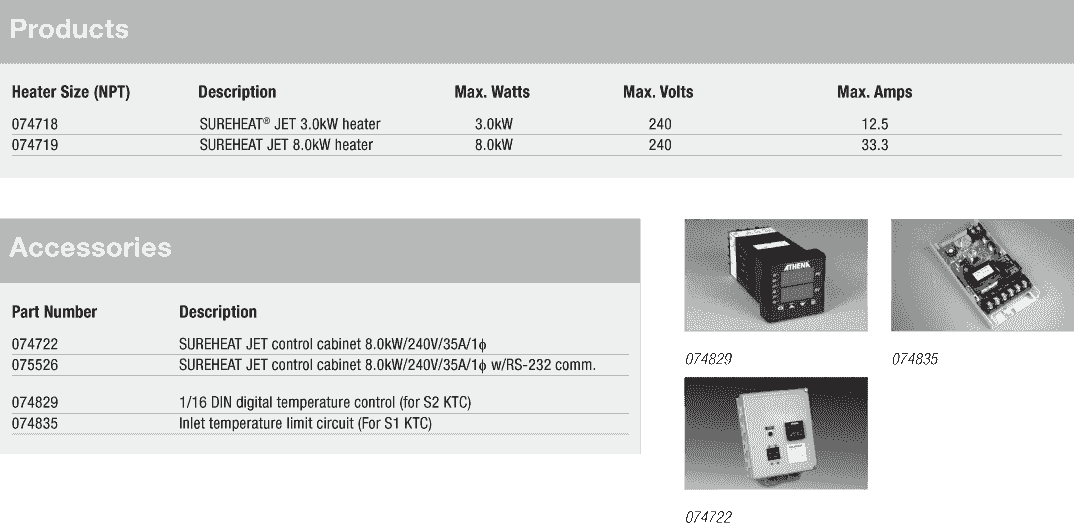

Products
F074718,F074719
