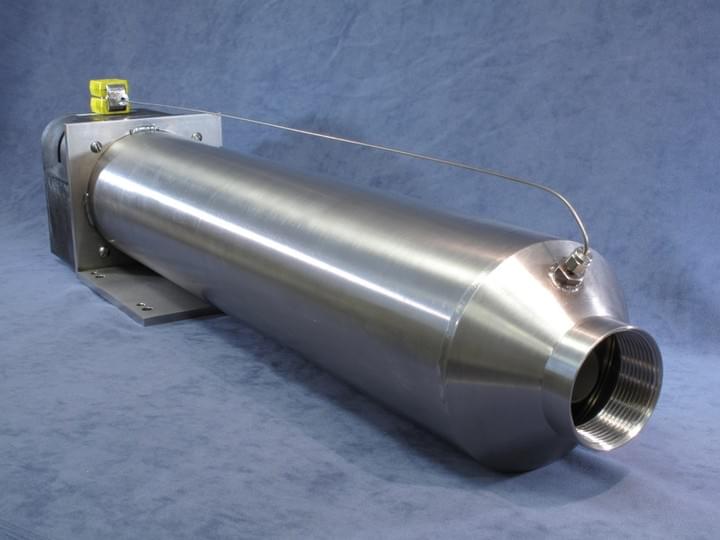

SUREHEAT® MAX HT Air / Gas Heaters
TUTCO SUREHEAT designed a 900 degree Celsius high temperature closed loop controlled air heater
Overview
The Max HT provides a compact and efficient high temperature solution for applications up to 1652°F (900°C). A dual probe type K thermocouple with a convenient terminal block is included for ease of wiring. Each exposed thermocouple probe is used to measure inlet and exit air temperature. One is typically used for process temperature control and the other to monitor the high temperature limit. Each heater has a convenient method for mounting and offers a ground stud for safe operation.

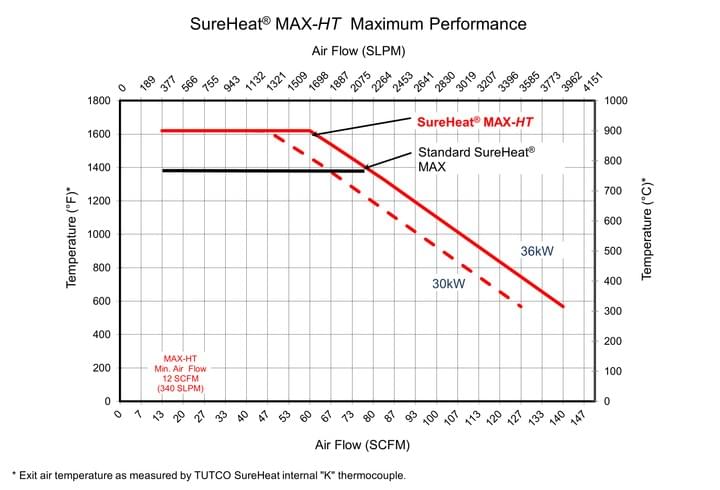

Performance
Specifications
- Specially constructed SUREHEAT MAX air heater for heating air and inert gases to 900°C (1652°F)
- For applications demanding extremely high temperature including automotive sensors, diesel filter regeneration, thermal stress conditioning, general R&D, etc.
- Two (2) current models available:
- 30kW 380V - 3 phases 45.6A (P/N F076189)
- 36kW 480V - 3 phases 43.4A (P/N F076197)
- Custom sizes available upon request
- One (1) dual exposed junction, Type K thermocouple probe
- included for precision control and over-temperature protection
- Recommended minimum airflow 12 SCFM (340 SLPM)
- RoHS compliant
Installation
Products
F076250,F076518,F076189,F076197,F205773,F205772,F205713,F077081,F077082,F077083,F077084,F077085,F206707,F206662,F206663,F206664,F206598
