SUREHEAT® MAX Air / Gas Heater
TUTCO SUREHEAT is a closed-loop controlled air heater designed for use with medium and high pressure blowers as air source.
Overview
Designed for use with compressed or regenerative blowers, Tutco SureHeat Closed-Loop Intelligent Process Heat Solutions come with built-in type K thermocouples to accurately measure temperature. They are designed for use with our Tutco SureHeat Control Panels ensuring precise voltage control and overshoot protection. Choices range from 1 or 3 phase power sources and voltages.
An electric air heater works by transferring electrical energy into a passing air stream. The power and amount of air flow will determine how hot the air heater element will get. The calculation tool in the upper right hand of the webpage will help determine the specifications and heater required for your application.
Overview

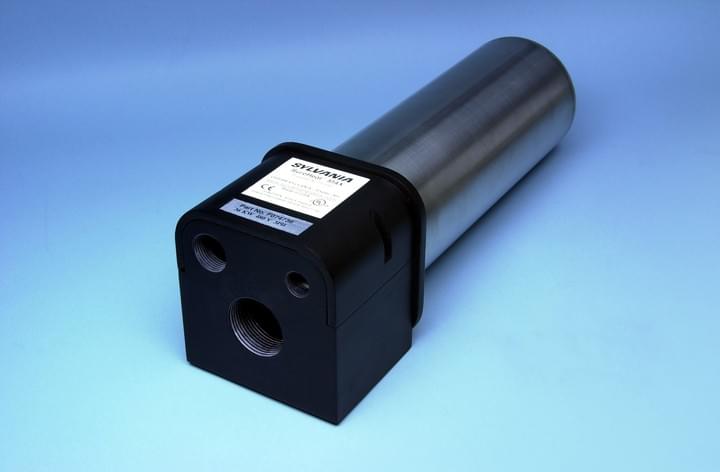

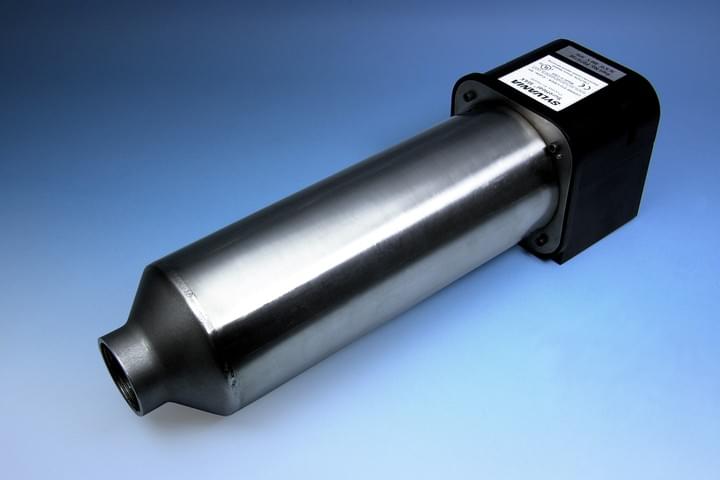

The Max provides a compact and efficient heater solution for air temperatures up to 1400°F (760°C). Available in a 6.0kW to 36.0kW, 240V/380V/480V 1ø / 3ø units, the Max offers two type “K” thermocouples with a convenient terminal block for easy wiring. To ensure safety, power and perfect control, connect with the optional Max Control Panel. Each heater has a convenient method for mounting the housing and offers a ground stud located at the inlet of the heater.

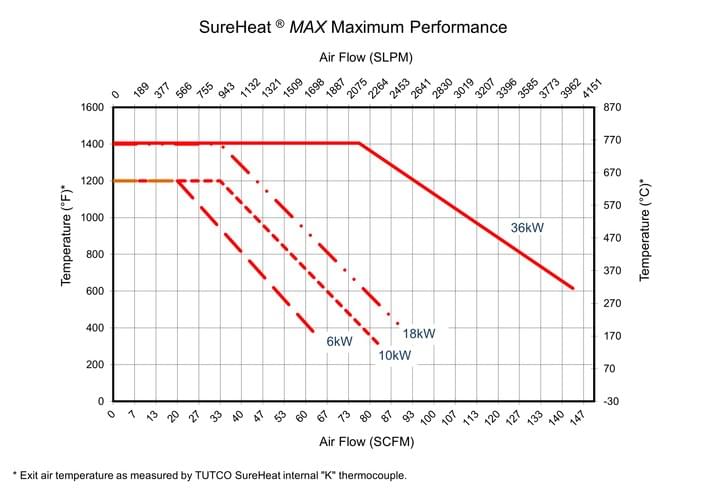

Performance
Specifications
- Air temperature controllable to 1400°F (760°C)
- Power ratings 6.0kW - 36.0kW 240/380/480V - 1φ /3φ
- Two internal Type K thermocouple sensors for control and safety:
- S1 measures inlet temperature
- S2 measures exit temperature
- Rapid heat-up and cool-down
- Maximum air pressure 60 psi (4 bar)
- Maximum inlet temperature 200°F (93°C)
- Recommended minimum airflow 12 SCFM
- Use SUREHEAT MAX Control (purchased separately) for easy installation
- RoHS compliant

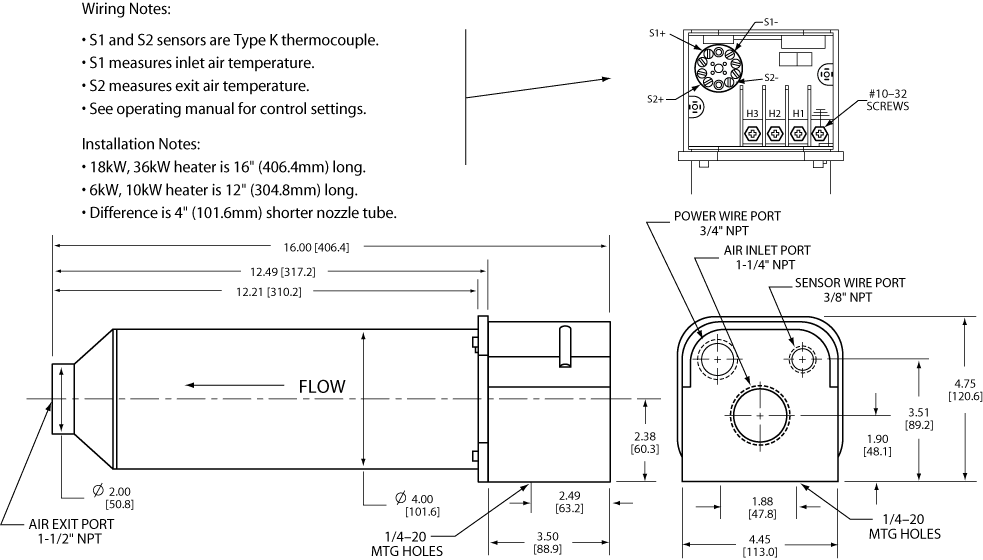

Installation

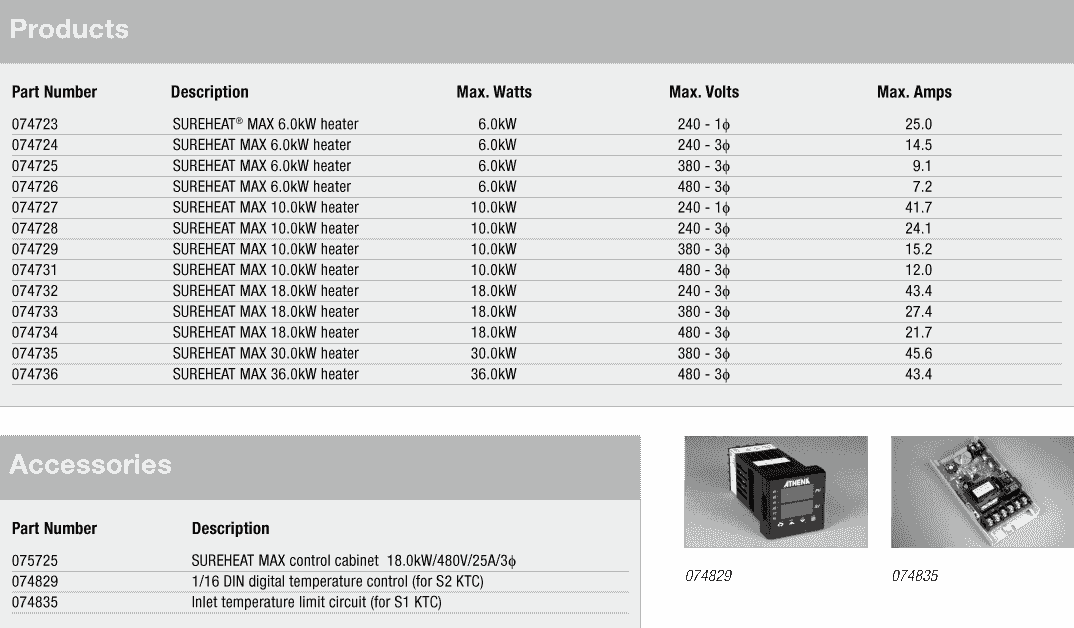

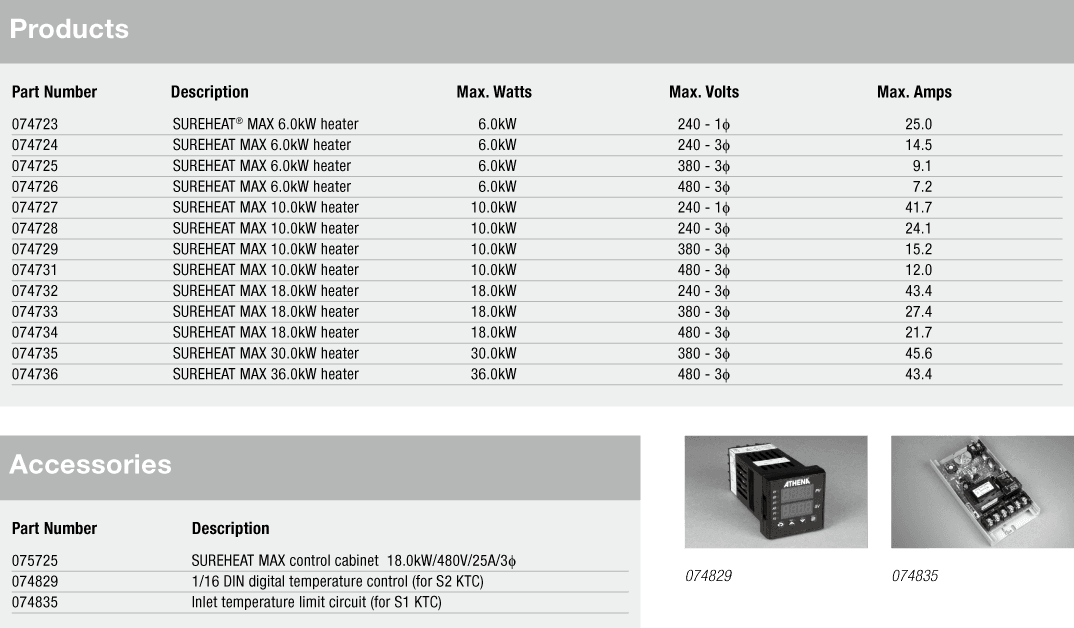

Products
F074723,F074724,F074725,F074726,F074727,F074728,F074729,F074731,F074732,F074733,F074734,F074735,F074736
