Serpentine II, IV Triple Pass Heaters
TUTCO SUREHEAT designed self insulated, easy to maintain closed-loop control air heater
Overview

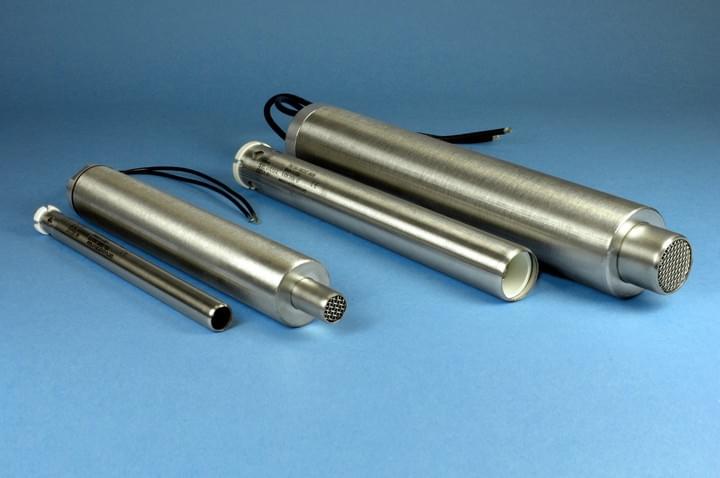

The Serpentine II and Serpentine VI Triple Pass heaters are modular field replaceable air heater products commonly used in OEM applications. The popular air heater element consists of a versatile Serpentine coil that fits into a stainless steel “triple-pass” exchange housing and makes electrical connections through fittings pressed into the base. The housing uses the incoming air to cool the outer shell prior to passing through the heater element. This minimizes radiant heat loss and provides a safe to the touch product to minimize injury to operators who come in contact with the heater. Air is commonly supplied by compressed air supply lines.

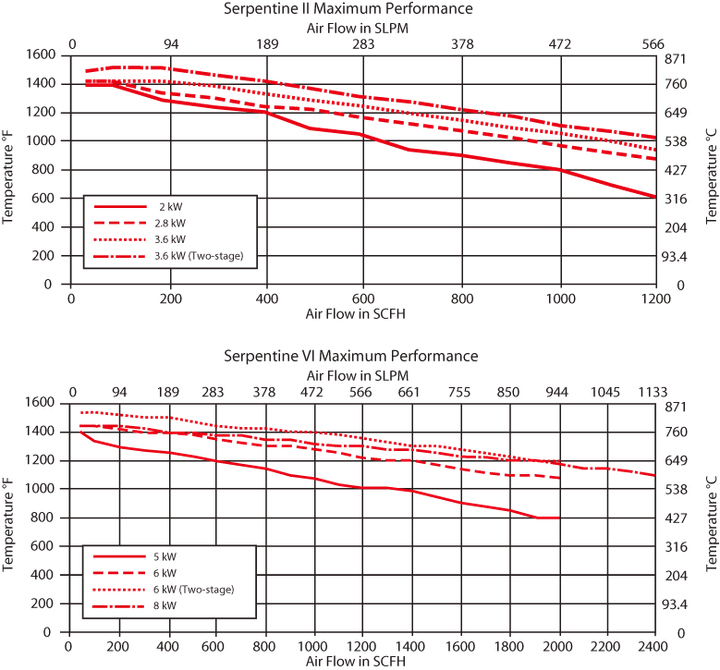

Performance

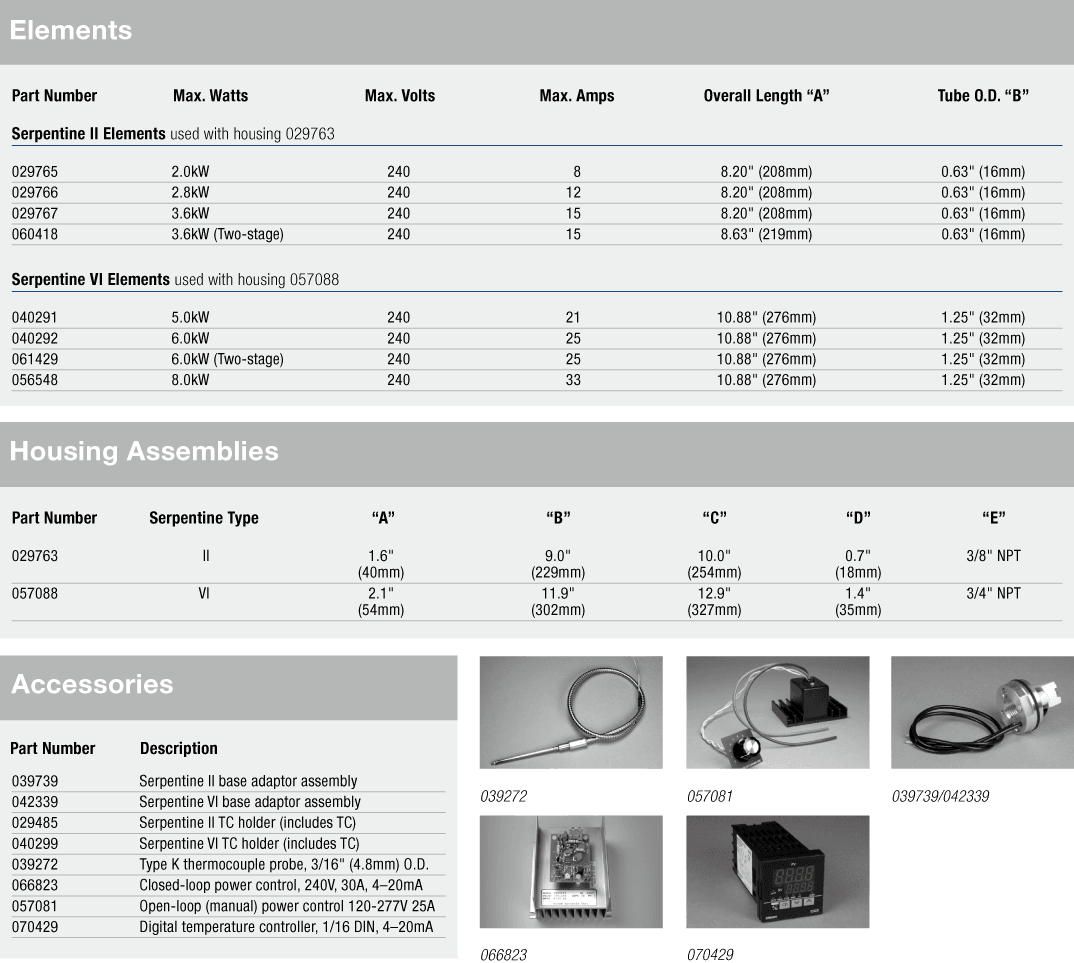

Specifications
- Air temperature controllable to 1500˚F (815˚C)
- Serpentine II to 3.6kW
- Serpentine VI to 8.0kW
- Triple Pass Heat Exchanger uses incoming air to cool outer shell
- Maximum air pressure 25 psi (1.7 bar)
- Replaceable element assemblies
- Recommended minimum airflow 60 SCFH
- RoHS compliant
- Minimizing Hot Air Tools Element Failures
- Always ensure air is flowing before powering the heating element
- Slowly regulate the ramp up time using the potentiometer to control the AC voltage
- Use a temperature controller with 100ms cycle time

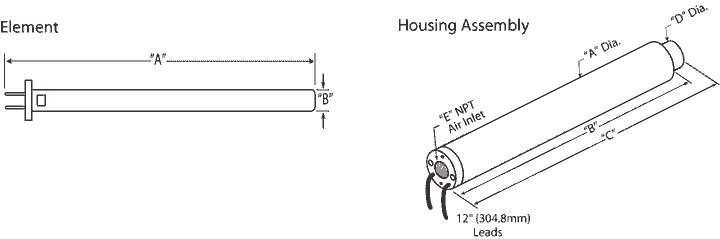

Installation
Additional Info
- Minimizing Hot Air Tools Element Failures
- Always ensure air is flowing before powering the heating element
- Slowly regulate the ramp up time using the potentiometer to control the AC voltage
- Use a temperature controller with 100ms cycle time
