• SKORPIONTM Hot Air Generator

    TUTCO SUREHEAT designed hot air blower with medium pressure blower

    F075615,F075616,F075744,F075745,F075746,F075835,F075869,F076008,F076029,F076436,F205486,F205499,F205502,F205512,F205513,F205526,F205549,F205604,F205614

    Overview

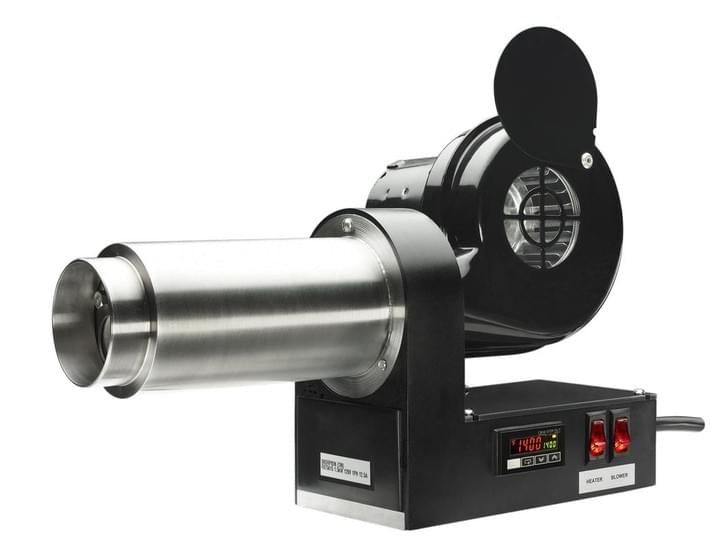

    The SKORPION™ Air Heater offers a complete heating solution, combining the heater, blower, and controller in one unit. Designed for convenience, it’s ready to plug in and use right out of the box. The heater includes a digital display for real-time temperature monitoring and built-in over-temperature protection for added safety. Models are available without the blower for use with customer supplied air source. SKORPION Air Heaters come with a two-year limited warranty.

  • Performance

    F075615,F075616,F075744,F075745,F075746,F075835,F075869,F076008,F076029,F076436,F205486,F205499,F205502,F205512,F205513,F205526,F205549,F205604,F205614

    Specifications

    • Air temperature controllable to 1400°F (760°C)
    • Power ratings 1.5kW – 4.5kW 120/230 - 1 phase
    • Complete heater including blower and control unit that is ready to plug in and use
    • Convenient digital display shows current operating temperature
    • Built in over-temperature protection and a two-year limited warranty
    • Models also available without blower for use with customer
    • supplied air source
    • - Maximum inlet temperature 200°F (93°C)
    • - Recommended minimum airflow 2 SCFM
    • RoHS compliant
  • Installation

    F075615,F075616,F075744,F075745,F075746,F075835,F075869,F076008,F076029,F076436,F205486,F205499,F205502,F205512,F205513,F205526,F205549,F205604,F205614

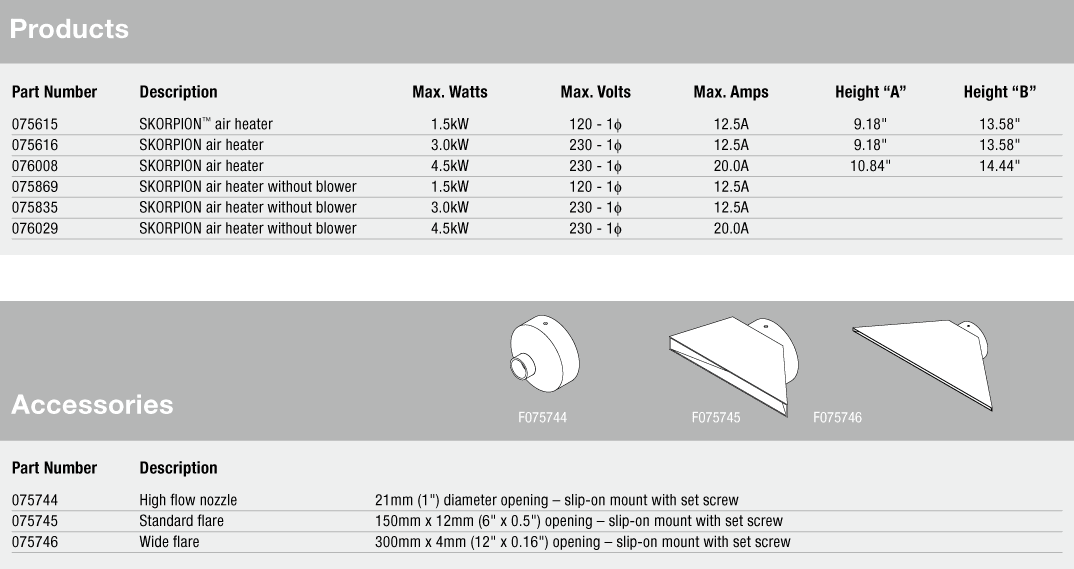

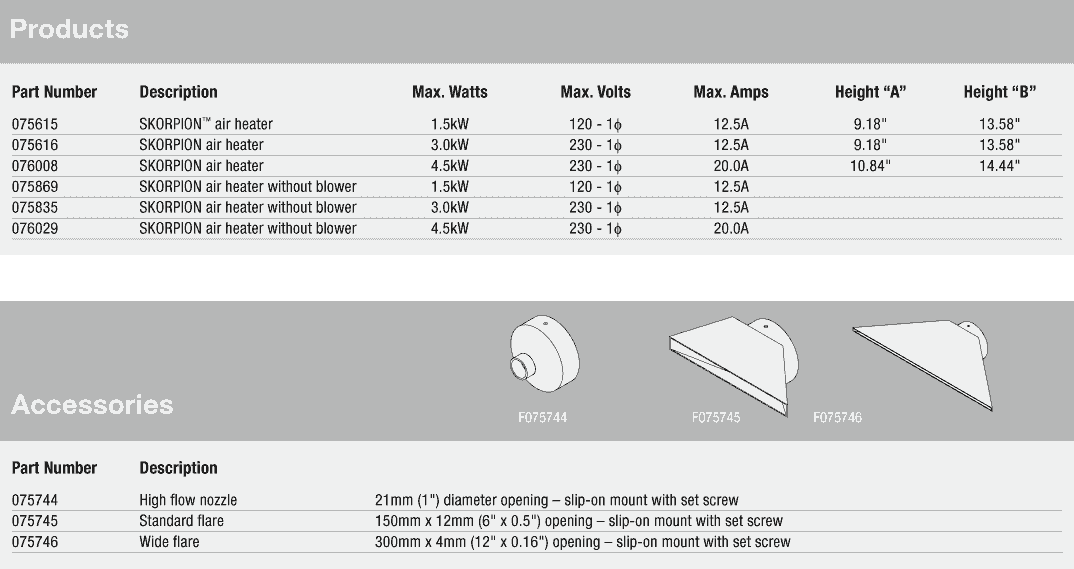

  • Products
